Clutch Disc 128258/128257, 10SPRING

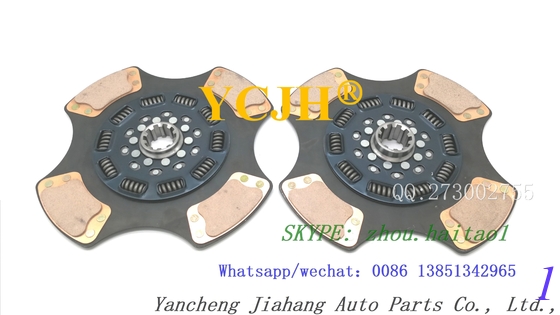

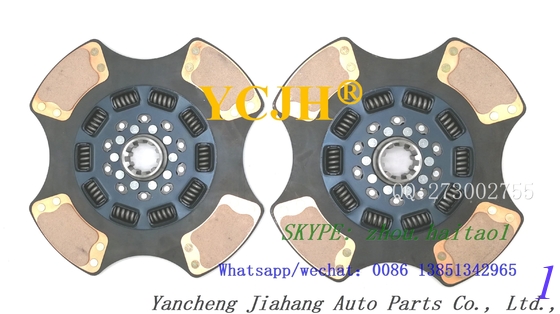

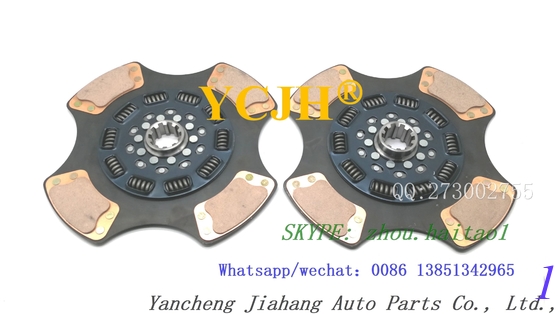

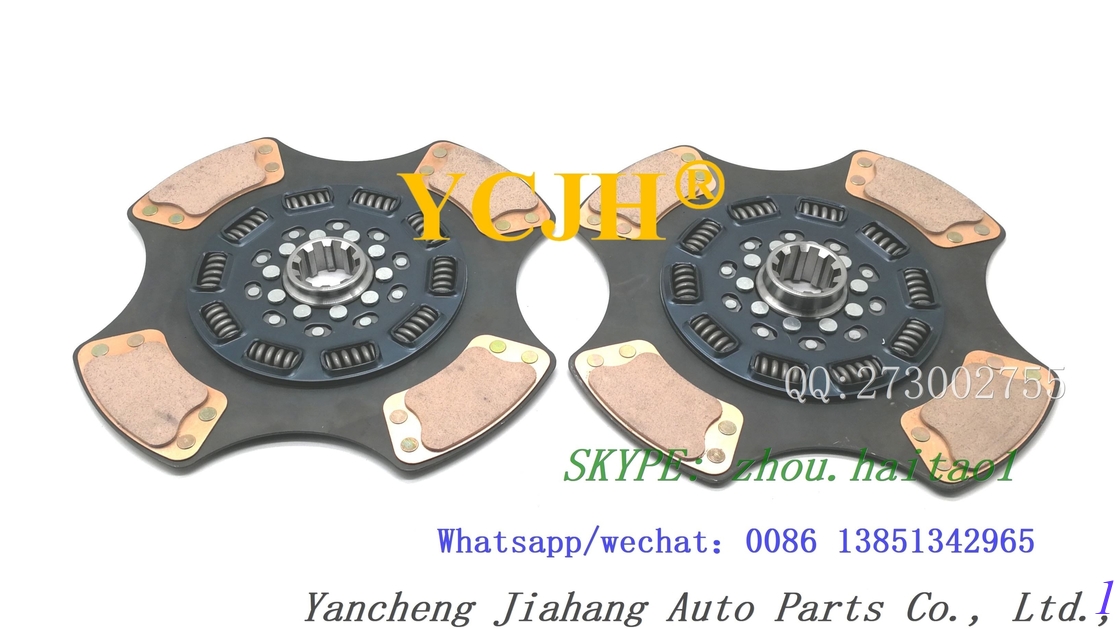

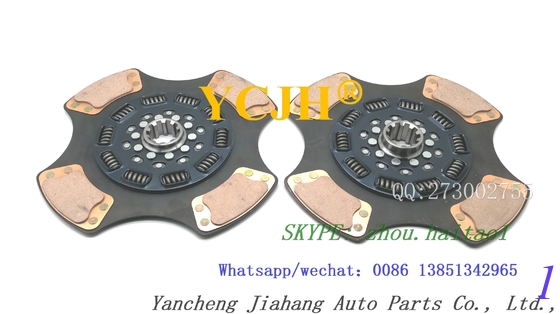

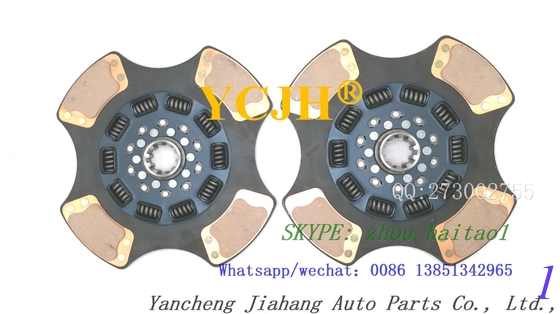

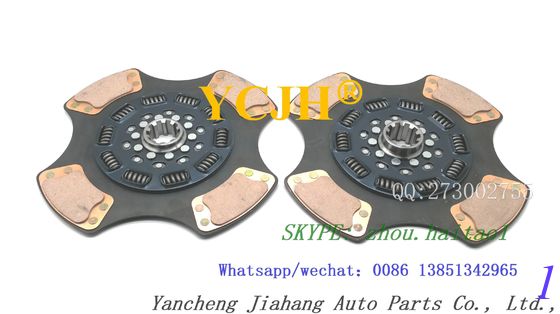

Large Image : Clutch Disc 128258/128257, 10SPRING

Product Details:

Place of Origin:	YanCheng
Brand Name:	YCJH
Certification:	TS16949
Model Number:	Clutch Disc 128258/128257, 10SPRING

Payment & Shipping Terms:

Price:	USD 1.00
Packaging Details:	Neutral packing
Delivery Time:	55-60
Payment Terms:	T/T
Supply Ability:	30000
Minimum Order Quantity:	50

Contact Now

Detailed Product Description

Clutch Disc 128258/128257, 10SPRING

EASY PEDAL
108034-82
108050-59
108034-82
108050-59
108034-82
108550-59


108391-74
108391-78
108925-84
108391-74
108391-82
108391-78
108391-82
108391-74
108391-78
108925-82
108925-20
108391-74
108391-78
108925-82
108391-74
108391-74
108925-82
108391-78
108925-84

EASY PEDAL
108935-51
108935-26
108925-80
108925-80
108925-82
108925-20
108925-25

113C151 PL1631 113C166

M107035-82	107035-82	1100	127400-4	3600	MTTP001	113C49	128343/128344	8	Organic
M107063-59	107063-59	1400	127400-4	3600	MTTP001	113C49	128529/128530	8	Ceramic	4P
14"x2"x10
M107034-30	107034-30	1000	127390-1	3200	MTTP001	113C49	128310/128311	Rigid	Organic
M107034-32	107034-32	1000	127390-1	3200	MTTP001	113C49	128238/128239	8	Organic
M107950-59	107950-59	1400	127390-1	3200	MTTP001	113C49	128229/128230	8	Ceramic	4P
M107034-61	107034-61	1000	127390-2	2800	MTTP001	113C49	128441/128442	8	Ceramic	3P





















14" STAMPED STEEL CLUTCH KITS
(FLAT FLYWHEEL CAST COVER CLUTCH)

MH No.	Ref No.	Torque Rating (ft/lb)			Center Plate
MH No.	Ref No.	Torque Rating (ft/lb)	Ref No.	Plate Load(lb)	MH No.	Ref No.	Ref No. (Front & Rear)	No.of Windows	Facing	Buttons
14"x1.75"x10 Angle Spring Single Plate
M107683-5	107683-5	650	129059-1	3200			128577	8	Ceramic	3P
M107401-1	107401-1	650	129060-2	2800			127405	8	Ceramic	4P
14"x1.75"x10 Angle Spring Tow Plates
M107237-10	107237-10	900	129060-5	2000	MTTP005	125197	128667/128668	8	Ceramic	3Trp
M107237-16	107237-16	800	129060-2	2800	MTTP005	125197	128343/128344	8	Organic
M107237-22	107237-22	860	129060-3	2500	MTTP005	125197	128616/128617	8	Ceramic	3P
M107237-24	107237-24	1050	129060-3	2500	MTTP005	125197	127404/127405	8	Ceramic	4P
14"x1.75"x10 Solo Single Plate
M109400-5	109400-5	650	139000-12	3200			128577	8	Ceramic	3P
14"x1.75"x10 Solo Tow Plates
M109500-10	109500-10	900	139001-5	2000	MTTP005	125197	128667/128668	8	Ceramic	3Trp
M109500-22	109500-22	860	139001-3	2500	MTTP005	125197	128616/128617	8	Ceramic	3P










14" PUSH TYPE CLUTCH KITS


MH No.	Ref No.	Torque Rating (ft/lb)			Center Plate
MH No.	Ref No.	Torque Rating (ft/lb)	Ref No.	Plate Load(lb)	MH No.	Ref No.	Ref No. (Front & Rear)	No.of Windows	Facing	Buttons
14"x1.5"x10
M107350-2	107350-2	500	102101	2400			103126	8	Ceramic	4P
M107350-3	107350-3	500	102101	2400			103161	8	Ceramic	3P
M107621-1	107621-1	500	102048	2400			103126	8	Ceramic	4P
M107621-11	107621-1	420	102048	2400			128386	8	Organic
14"x1.75"x10
M107350-1	107350-1	500	102101	2400			103470	8	Ceramic	4P
M107621-2	107621-2	500	102048	2400			103470	8	Ceramic	4P


Note:	102101—ø8.64-12 holes 375 PCD
	102048—ø9.56-12 holes 393.7 PCD
















15 1/2” CAST IRON CLUTCH KITS
(FLAT FLYWHEEL CAST COVER CLUTCH)

No.	Ref No.	Torque Rating (ft/lb)			Center Plate
No.	Ref No.	Torque Rating (ft/lb)	Ref No.	Plate Load(lb)	MH No.	Ref No.	Ref No. (Front & Rear)	No.of Windows	Facing	Buttons
15 1/2"x2"x10 (6 Spring Cover)
M107091-21	107091-21	1100	127597-4	3600	MTTP003	113C166	128067/128068	Rigid	Ceramic	6VTL
M107091-35	107091-35	1100	129018-4	3600	MTTP004	113C165	128322/128323	Rigid	Organic
M107091-55	107091-55	1400	127597-4	3600	MTTP003	113C166	128049/128050	8	Ceramic	6VTL
M107091-77	107091-77	1250	129018-4	3600	MTTP004	113C165	128431/128432	8	Organic
M107091-81	107091-81	1400	127597-4	3600	MTTP003	113C166	128519/128520	8	Ceramic	4P
M107925-82	107925-82	1650	127597-4	3600	MTTP003	113C166	128462 F/R	7	Ceramic	4P
M108935-85	108935-85	1700	127597-4	3600	MTTP003	113C166	128541F/R	7	Ceramic	6P
M107935-51	107935-51	1650	127597-4	3600	MTTP003	113C166	128362/128363	9	Ceramic	4P
M107935-91	107935-91	1650	127597-4	3600	MTTP003	113C166	128537/128538	9	Ceramic	6P
M107391-78	107391-78	1450	129018-6	4000	MTTP004	113C165	128445/128446	10	Organic
M107091-74	107091-74	1650	127597-4	3600	MTTP003	113C166	128257/128258	10	Ceramic	4P
M107391-93	107391-93	1810	127597-6	4000	MTTP003	113C166	128539/128540	10	Ceramic	6P
15 1/2"x2"x10 (9 Spring Cover)
M108391-21	108391-21	1100	157700-4Z	3600	MTTP003	113C166	128297/128298	Rigid	Ceramic	4P
M108391-35	108091-35	1100	157020-4Z	3600	MTTP004	113C165	128322/128323	Rigid	Organic
M108391-77	108391-77	1250	157020-4Z	3600	MTTP004	113C165	128431/128432	8	Organic
M108391-81	108391-81	1400	157700-4Z	3600	MTTP003	113C166	128519/128520	8	Ceramic	4P
M108925-82	108925-82	1650	157700-4Z	3600	MTTP003	113C166	128462 F/R	7	Ceramic	4P
M108925-85	108925-85	1700	157700-4Z	3600	MTTP003	113C166	128541F/R	7	Ceramic	6P
M108935-51	108935-51	1650	157700-4Z	3600	MTTP003	113C166	128362/128363	9	Ceramic	4P
M108935-91	108935-91	1650	157700-4Z	3600	MTTP003	113C166	128537/128538	9	Ceramic	6P
M108935-78	108935-78	1450	157020-6Z	4000	MTTP004	113C165	128445/128446	10	Organic
M108391-74	108391-74	1650	157700-4Z	3600	MTTP003	113C166	128257/128258	10	Ceramic	4P
M108391-93	108391-93	1810	157700-6Z	4000	MTTP003	113C166	128539/128540	10	Ceramic	6P
M108935-15	108935-15	2050	157700-6Z	4000	MTTP003	113C166	128709F/R	7VCT	Ceramic	6P
