CLUTCH ASSEMBLY - 5110, 6410, 6710, 6810, 7610, 7710 (81/) - 5610, 6610 (10-85/)
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
CLUTCH ASSEMBLY - 5110, 6410, 6710, 6810, 7610, 7710 (81/) - 5610, 6610 (10-85/)
| № | Номер | Название | Опции |

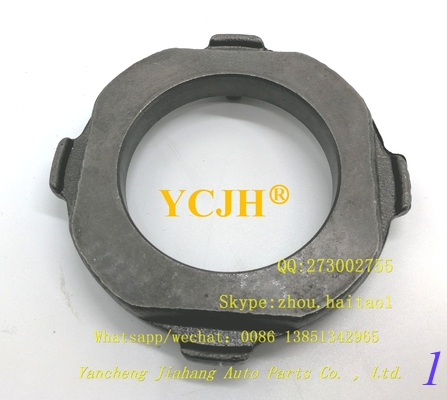

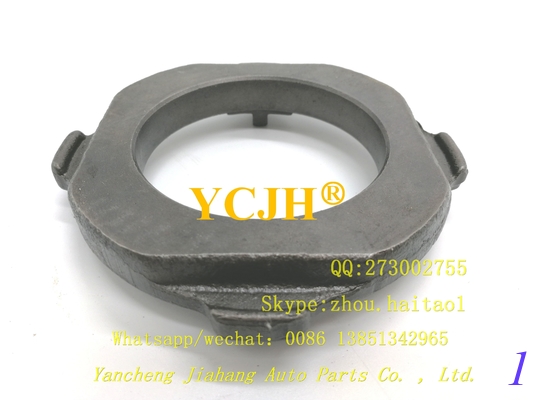

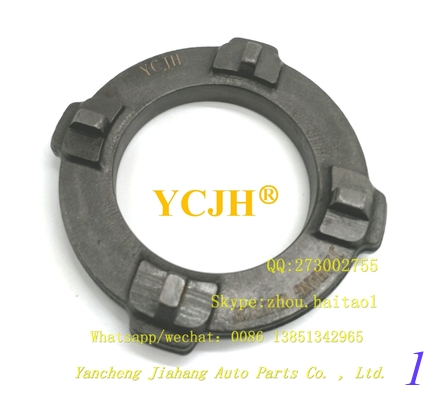

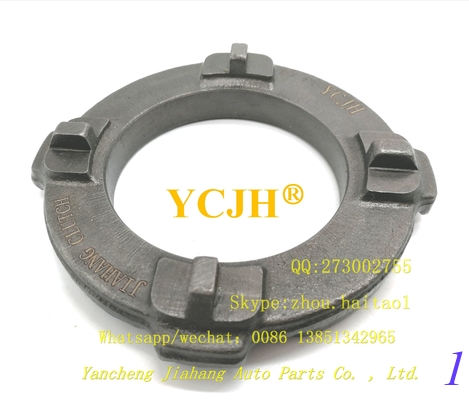

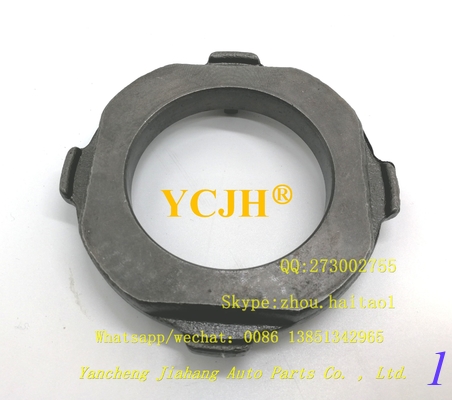

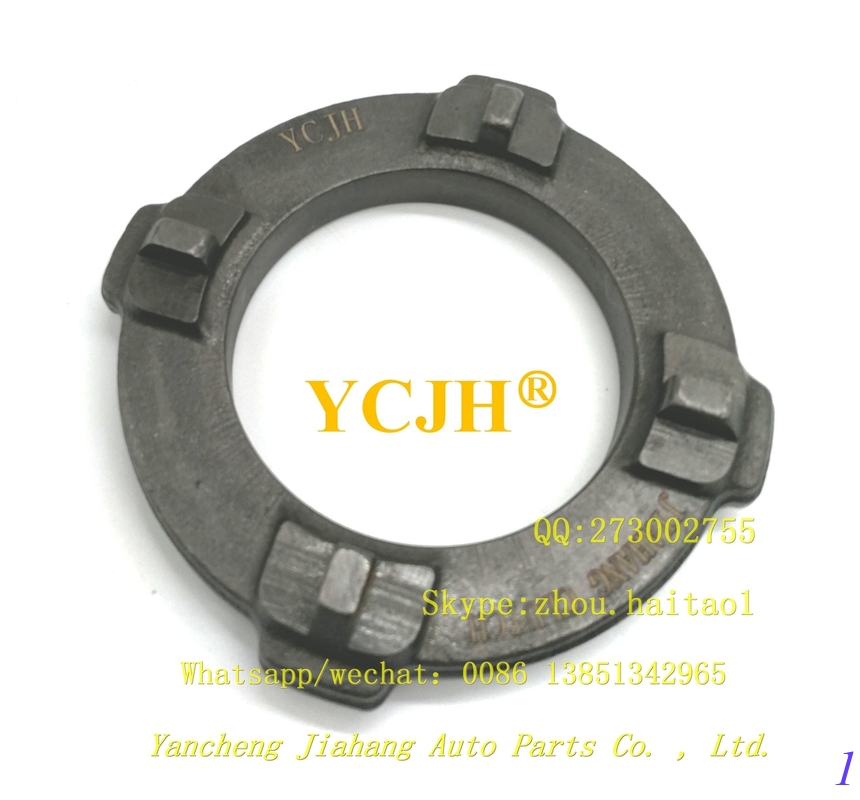

| 1 | F0NNN779AA | BALL BEARING | Bearing, Start Year: 01-JAN-81 |
| 2 | E1NNN777AB | RETAINER | Plate, 20 Teeth, Start Year: 01-JAN-81 |
| E00N2583 | When Replacing C5NNN777A (15T) W/E1NNN777AB (20T) you must also replace 15T PTO Driveshaft W/E4NN7A684AA (20T) PTO Driveshaft. | ||
| 3 | 43172S36 | SCREW | Screw, Cap, HH, G8, Self-Locking, 9/16"-18 x 2-5/8", Start Year: 01-JAN-81 |
| 4 | E116GC9 | DOWEL,10.29mm OD x 20.32mm L | Dowel, Start Year: 01-JAN-81 |
| 5 | E115GC9 | DOWEL | Dowel, Start Year: 01-JAN-81 |
| 6 | C5NN7N596B | SPACER | Spacer, Start Year: 01-JAN-81 |
| 7 | 82010859 | BEARING ASSY,63.5mm ID x 103.38mm OD x 22.1mm W | Bearing, Start Year: 01-JAN-81 |
| 8 | E1NN7571CB | HUB | Hub, Non-Syncronized, Start Year: 01-JAN-81 |
| 8 | E1NN7571BA | HUB | Hub, W/Syncronized, Start Year: 01-JAN-81 |
| 9 | 82011593 | CLUTCH PLATE,327mm OD | Disc Assy., W/16 x 4 or 16 x 8, Syncro-Standard Duty W/Damper Springs, Years: 01-JAN-81-31-DEC-92 |
| 9 | 82011593R | REMAN-CLUTCH DISC | 5110 (5/84-10/91), 5610, 6610, Both (1/81-12/93), 6410 (1/88-12/91), (1/81-12/93), 6710 (1/81-9/85), 6810 (4/89-10/91), 6610O, 7610, 7710, All (1/81-10/91), 7610O (10/81-12/91) |
| 9 | 82011593C | CORE-CLUTCH DISC | Return Part Number |
| 9 | 86634432 | REMAN-CLUTCH DISC | 5110, 5610, 6410, 6610, 6710, 6810, 7610, 7710, W/16 x 4 or 16 x 8, Syncro-Standard Duty W/Damper Springs, Years: 01-JAN-81-31-DEC-92 |
| 9 | 86634433 | CORE-CLUTCH DISC | Return Part Number |
| 9 | 82004600 | CLUTCH PLATE | Disc Assy., W/8 x 2 or 8 x 4, Syncro-Heavy Duty L/Damper Springs, Start Year: 01-JAN-81 |
| 9 | 82011594R | REMAN-CLUTCH DISC | |
| 9 | 82011594C | CORE-CLUTCH DISC | Return Part Number |
| 9 | 82006010 | CLUTCH & DISC ASSY,327.5mm OD | Disc, Cera-Metalic, Button Clutch, Special "M" Tractors, Hi-Way Mowers |
| 9 | 82006010R | REMAN-CLUTCH PLATE | Disc, Cera-Metalic, Button Clutch, Special "M" Tractors, Hi-Way Mowers |
| 9 | 82006010C | CORE-CLUTCH PLATE | Return Number |
| 9 | 86634441 | REMAN-CLUTCH DISC | 5110, 5610, 6410, 6610, 6710, 6810, 7610, 7710, Disc, Cera-Metalic, Button Clutch, Special "M" Tractors, Hi-Way Mowers |
| 9 | 86634442 | CORE-CLUTCH DISC | Return Part Number |
| 9 | 86640489 | REMAN-CLUTCH DISC | Disc 12" |
| 9 | 86640490 | CORE-CLUTCH DISC | Return Part Number |
| 9 | 84589660R | REMAN-CLUTCH KIT | 5110 4 Cyl. (5/84-10/91), 5610, 6610, Both 4 Cyl. (1/81-12/93), 6710 4 Cyl. Flat Deck (1/81-9/95), 6810 4 Cyl. (4/89-10/91), 7610 4 Cyl. (1/81 -10/91),7710 4 Cyl. Flat Deck (1/81 -10/91), |
| 9 | 84589660C | SERVICE KIT | Return Part Number, (Note: Use The Shipping Carton Kit Was Received In To Return Core parts) |
| 10 | 82006046 | COVER ASSY,Plate and Cover Assembly, 13" | Plate & Cover, Finger Type, Use W/Fiber Disc, Includes: Ref. 11 thru 23, Start Year: 01-JAN-81 |
| 10 | 82006046R | REMAN-CLUTCH PLATE | 6710 (1/81-9/85), 7710 (1/81-10/91), Both Flat Deck, 5610, 6610, Both (1/81-12/93), 5110 (5/84-10/91), 6410 (U.K. ONLY) (1/88-12/91), 6810 (4/89-10/91), 7610 (1/81-10/91), All 4 CYL AG, 6610O (1/81-10/91), 7610O (10/81-12/91), Both 4 CYL Orchard, All Tractor 10 SERIES, Plate & Cover Assy, Use w/Cerametalic Disc |
| 10 | 82006046C | CORE-CLUTCH PLATE | Return Part Number |
| 10 | 86634445 | REMAN-CLUTCH PLATE | Plate & Cover, Finger Type, Use W/Fiber Disc, Includes: Ref. 11 thru 21 & 23, Start Year: 01-JAN-81 |
| Remanufactured. | |||
| 10 | 86634446 | CORE-CLUTCH PLATE | Return Part Number |
| 10 | 82006009 | CLUTCH MECHANISM | Plate & Cover Assy., Pressure 13", Diaphram Type |
| 10 | 86640465 | REMAN-CLUTCH PLATE | Clutch Assy 13"; Finger Type |
| 10 | 86640466 | CORE-CLUTCH PLATE | Return Part Number |
| 10 | 82006046 | COVER ASSY,Plate and Cover Assembly, 13" | Plate & Cover Assy., Pressure 13", Finger Type, Use w/Cerametalic Disc, Special "M" Tractors Only, Highway Mower, Includes: Ref. 11 thru 21 & 23 |
| 11 | E1ADDN7566B | PLATE | Plate, Start Year: 01-JAN-81 |
| 12 | E0NN7572GA | SPRING | Spring, Start Year: 01-JAN-81 |
| 13 | EDPN7591B | KIT | Kit, Lever, Start Year: 01-JAN-81 |
| 14 | E329GD9 | TOP LINK | Strut, Start Year: 01-JAN-81 |
| 15 | C5NN7N611E | BOLT | Eyebolt, Start Year: 01-JAN-81 |
| 16 | E1ADDN7562B | SPRING | Spring, Start Year: 01-JAN-81 |
| Basildon. | |||
| 17 | E1ADDN7565 | PIN | Pin, Start Year: 01-JAN-81 |
| Basildon. | |||
| 18 | E1ADDN7569B | COVER | Cover, Start Year: 01-JAN-81 |
| 19 | E326GD9 | NUT | Nut, Start Year: 01-JAN-81 |
| 20 | 83928256 | FERRULE | Ferrule, Start Year: 01-JAN-81 |
| 21 | C5NN7N613B | BOLT | Bolt, Start Year: 01-JAN-81 |
| 22 | E0NN7N511AA | PLATE | Plate, Start Year: 01-JAN-81 |
| 23 | E327GD9 | SPRING | Retainer, Start Year: 01-JAN-81 |
| 24 | 80680 | LOCK WASHER,3/8 0.381 CST ZND | WASHER, LOCK, 3/8", Start Year: 01-JAN-81 |
| 25 | 280643 | BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd | Screw, Cap, HH, G5, 3/8"-16 x 7/8", Start Year: 01-JAN-81 |
| 26 | D4NN7548A | BEARING ASSY | Hub & Bearing, W/Greaser, Start Year: 01-JAN-81 |
| 27 | 82847534 | HOSE | Tube, Start Year: 01-JAN-81 |
| 28 | D4NN7N632B | HYD CONNECTOR | Adapter, Start Year: 01-JAN-81 |
| 29 | D4NN7N635A | LUBE NIPPLE | Lubricator, Start Year: 01-JAN-81 |
| 30 | 87308 | JAM NUT,Jam, 3/8"-24, G2 | Nut, Jam, G2, 3/8"-24, L/Cab, Start Year: 01-JAN-81 |
