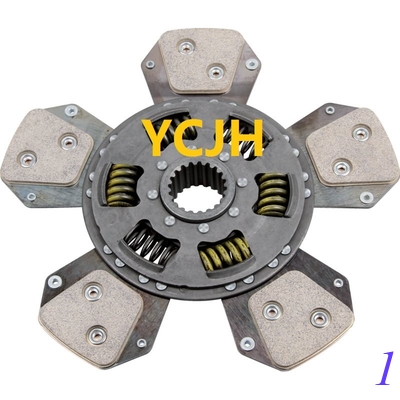

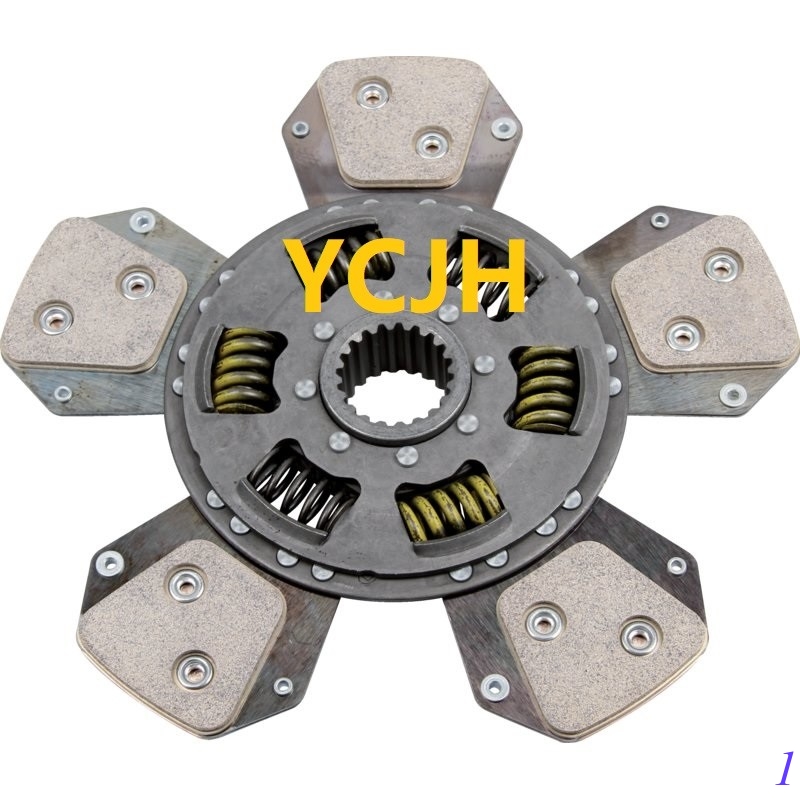

328053610 CLUTCH DISC
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
328053610 CLUTCH DISC
| L024280P0081 | 0.015.4708.3/10 |
| 328 0846 10 | 0.015.4422.3/10 |
| 328 0540 10 | 0.015.4423.3 |
| Parts on group (5610) - 4 CYL AG TRACTOR 10 SERIES (1/81-12/93): | |||||
| Pos. | Part No | Qty | Parts name | Comments | |
| 1 | F0NNN779AA | [1] | BALL BEARING | BAS Bearing, Start Year: 01-JAN-81 Superseded by part number: 47508382 | |
| 2 | E1NNN777AB | [1] | RETAINER | BAS Plate, 20 Teeth, Start Year: 01-JAN-81 Superseded by part number: 83936827 | |
| 3 | 43172S36 | [6] | SCREW | FOR Screw, Cap, HH, G8, Self-Locking, 9/16"-18 x 2-5/8", Start Year: 01-JAN-81 Superseded by part number: 83976421 | |
| 4 | E116GC9 | [1] | DOWEL,7.89mm OD x 20.32mm L | BAS Dowel, Start Year: 01-JAN-81 | |
| 5 | E115GC9 | [1] | DOWEL,8.49mm OD x 20.32mm L | BAS Dowel, Start Year: 01-JAN-81 Superseded by part number: 81800704 | |
| 6 | C5NN7N596B | [4] | SPACER | FOR Spacer, Start Year: 01-JAN-81 Superseded by part number: 81815816 | |
| 7 | 82010859 | [1] | BEARING ASSY,63.5mm ID x 103.38mm OD x 22.1mm W | BAS Bearing, Start Year: 01-JAN-81 | |
| 8 | E1NN7571CB | [1] | HUB | BAS Hub, Non-Syncronized, Start Year: 01-JAN-81 Superseded by part number: 83992559 | |
| 8 | E1NN7571BA | [1] | HUB | BAS Hub, W/Syncronized, Start Year: 01-JAN-81 Superseded by part number: 83927906 | |
| 9 | 82011593 | [1] | CLUTCH PLATE,327mm OD | BAS Disc Assy., W/16 x 4 or 16 x 8, Syncro-Standard Duty W/Damper Springs, Years: 01-JAN-81-31-DEC-92 | |
| 9 | 82011593R | [1] | REMAN-CLUTCH DISC | BAS 5110 (5/84-10/91), 5610, 6610, Both (1/81-12/93), 6410 (1/88-12/91), (1/81-12/93), 6710 (1/81-9/85), 6810 (4/89-10/91), 6610O, 7610, 7710, All (1/81-10/91), 7610O (10/81-12/91) | |
| 9 | 82011593C | [1] | CORE-CLUTCH DISC | BAS Return Part Number | |
| 9 | 86634432 | [1] | REMAN-CLUTCH DISC | NH 5110, 5610, 6410, 6610, 6710, 6810, 7610, 7710, W/16 x 4 or 16 x 8, Syncro-Standard Duty W/Damper Springs, Years: 01-JAN-81-31-DEC-92 Superseded by part number: 82011593R | |
| 9 | 86634433 | [1] | CORE-CLUTCH DISC | NH Return Part Number | |
| 9 | 82004600 | [1] | CLUTCH PLATE | BAS Disc Assy., W/8 x 2 or 8 x 4, Syncro-Heavy Duty L/Damper Springs, Start Year: 01-JAN-81 Superseded by part number: 82011594 | |
| 9 | 82011594R | [1] | REMAN-CLUTCH DISC | BAS | |
| 9 | 82011594C | [1] | CORE-CLUTCH DISC | BAS Return Part Number | |
| 9 | 82006010 | [1] | CLUTCH & DISC ASSY,327.5mm OD | BAS Disc, Cera-Metalic, Button Clutch, Special "M" Tractors, Hi-Way Mowers Superseded by part number: 48024581 | |
| 9 | 82006010R | [1] | REMAN-CLUTCH PLATE | BAS Disc, Cera-Metalic, Button Clutch, Special "M" Tractors, Hi-Way Mowers | |
| 9 | 82006010C | [1] | CORE-CLUTCH PLATE | BAS Return Number | |
| 9 | 86634441 | [1] | REMAN-CLUTCH DISC | NH 5110, 5610, 6410, 6610, 6710, 6810, 7610, 7710, Disc, Cera-Metalic, Button Clutch, Special "M" Tractors, Hi-Way Mowers Superseded by part number: 82006010R | |
| 9 | 86634442 | [1] | CORE-CLUTCH DISC | NH Return Part Number | |
| 9 | 86640489 | [1] | REMAN-CLUTCH DISC | PA Disc 12" Superseded by part number: 82006021R | |
| 9 | 86640490 | [1] | CORE-CLUTCH DISC | PA Return Part Number | |
| 9 | 84589660R | [1] | REMAN-CLUTCH KIT | RAC 5110 4 Cyl. (5/84-10/91), 5610, 6610, Both 4 Cyl. (1/81-12/93), 6710 4 Cyl. Flat Deck (1/81-9/95), 6810 4 Cyl. (4/89-10/91), 7610 4 Cyl. (1/81 -10/91),7710 4 Cyl. Flat Deck (1/81 -10/91), | |
| 9 | 84589660C | [1] | SERVICE KIT | RAC Return Part Number, (Note: Use The Shipping Carton Kit Was Received In To Return Core parts) | |
| 10 | 82006046 | [1] | COVER ASSY,Plate and Cover Assembly, 13" | BAS Plate & Cover, Finger Type, Use W/Fiber Disc, Includes: Ref. 11 thru 23, Start Year: 01-JAN-81 | |
| 10 | 82006046R | [1] | REMAN-CLUTCH PLATE | BAS 6710 (1/81-9/85), 7710 (1/81-10/91), Both Flat Deck, 5610, 6610, Both (1/81-12/93), 5110 (5/84-10/91), 6410 (U.K. ONLY) (1/88-12/91), 6810 (4/89-10/91), 7610 (1/81-10/91), All 4 CYL AG, 6610O (1/81-10/91), 7610O (10/81-12/91), Both 4 CYL Orchard, All Tractor 10 SERIES, Plate & Cover Assy, Use w/Cerametalic Disc | |
| 10 | 82006046C | [1] | CORE-CLUTCH PLATE | BAS Return Part Number | |
| 10 | 86634445 | [1] | REMAN-CLUTCH PLATE | NH Plate & Cover, Finger Type, Use W/Fiber Disc, Includes: Ref. 11 thru 21 & 23, Start Year: 01-JAN-81 Superseded by part number: 82006046R | |
| 10 | 86634446 | [1] | CORE-CLUTCH PLATE | NH Return Part Number | |
| 10 | 82006009 | [1] | CLUTCH MECHANISM | BAS Plate & Cover Assy., Pressure 13", Diaphram Type | |
| 10 | 86640465 | [1] | REMAN-CLUTCH PLATE | PA Clutch Assy 13"; Finger Type Superseded by part number: 83912979R | |
| 10 | 86640466 | [1] | CORE-CLUTCH PLATE | PA Return Part Number | |
| 11 | E1ADDN7566B | [1] | PLATE | FOR Plate, Start Year: 01-JAN-81 Superseded by part number: 81805359 | |
| 12 | E0NN7572GA | [16] | SPRING | FOR Spring, Start Year: 01-JAN-81 | |
| 13 | EDPN7591B | [1] | KIT | FOR Kit, Lever, Start Year: 01-JAN-81 Superseded by part number: 83937189 | |
| 14 | E329GD9 | [4] | TOP LINK | FOR Strut, Start Year: 01-JAN-81 Superseded by part number: 81730998 | |
| 15 | C5NN7N611E | [4] | BOLT | FOR Eyebolt, Start Year: 01-JAN-81 Superseded by part number: 81816013 | |
| 16 | E1ADDN7562B | [4] | SPRING | FOR Spring, Start Year: 01-JAN-81 Superseded by part number: 81805338 | |
| 17 | E1ADDN7565 | [4] | PIN | FOR Pin, Start Year: 01-JAN-81 Superseded by part number: 81411367 | |
| 18 | E1ADDN7569B | [1] | COVER | FOR Cover, Start Year: 01-JAN-81 | |
| 19 | E326GD9 | [4] | NUT | FOR Nut, Start Year: 01-JAN-81 Superseded by part number: 81730997 | |
| 20 | 83928256 | [4] | FERRULE | FOR Ferrule, Start Year: 01-JAN-81 | |
| 21 | C5NN7N613B | [4] | BOLT | FOR Bolt, Start Year: 01-JAN-81 Superseded by part number: 280559 | |
| 22 | E0NN7N511AA | [1] | PLATE | BAS Plate, Start Year: 01-JAN-81 Superseded by part number: 83927138 | |
| 23 | E327GD9 | [4] | SPRING | BAS Retainer, Start Year: 01-JAN-81 Superseded by part number: 81717074 | |
| 24 | 80680 | [8] | LOCK WASHER,3/8 0.381 CST ZND | NH WASHER, LOCK, 3/8", Start Year: 01-JAN-81 | |
| 25 | 280643 | [8] | BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd | WIN Screw, Cap, HH, G5, 3/8"-16 x 7/8", Start Year: 01-JAN-81 | |
| 26 | D4NN7548A | [1] | BEARING ASSY | FOR Hub & Bearing, W/Greaser, Start Year: 01-JAN-81 Superseded by part number: 84137082 | |
| 27 | 82847534 | [1] | HOSE | BAS Tube, Start Year: 01-JAN-81 | |
| 28 | D4NN7N632B | [1] | HYD CONNECTOR | FOR Adapter, Start Year: 01-JAN-81 Superseded by part number: 83909108 | |
| 29 | D4NN7N635A | [1] | LUBE NIPPLE | FOR Lubricator, Start Year: 01-JAN-81 Superseded by part number: 83909109 | |
| 30 | 87308 | [1] | JAM NUT,Jam, 3/8"-24, G2 | NH Nut, Jam, G2, 3/8"-24, L/Cab, Start Year: 01-JAN-81 Superseded by part number: 86509310 | |
