Clutch Assembly (15-1/2" x 2") OE Ref 108391-74

China Clutch Assembly (15-1/2" x 2") OE Ref	108391-74 supplier

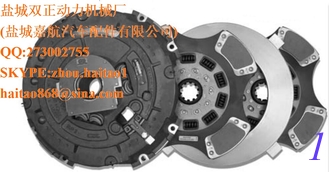

Large Image :  Clutch Assembly (15-1/2" x 2") OE Ref 108391-74

Product Details:

Place of Origin: YanCheng
Brand Name: JIAHANG CLUTCH
Certification: TS16949

Payment & Shipping Terms:

Price: USD1.00
Packaging Details: Neutral packing
Delivery Time: 45-50
Payment Terms: T/T L/C
Supply Ability: 30000
Minimum Order Quantity: 100
Contact Now
Detailed Product Description

Description Clutch Assembly (15-1/2" x 2")
OE Ref 108391-74
Model Easy Effort
Plates Two Plate
Cover Material Cast Iron
Release Pull
Size 15 1/2"
Spline 2"
Min FW N/A
Disc Descript Dampened Coaxial (10 Spring)
Fric Matl 8 Button (VSR)
Buttons Lined
Spring Press 3600#
Torque 1650
Comments
Ext Description 15-1/2" x 2" Easy Effort Clutch, Two-Plate, 4-Paddle /10-Spring, 3600 Plate Load / 1650 Torque, Triple-Zerk

Optional clutches for same application:
Angle Spring (SPA/GR): NMU770-064-4
Angle Spring (SPA/SLD): NMU751-064-4
Angle Spring (M/GR): NMU597-064-4
Angle Spring (M/SLD): NMU079-064-4
Angle Spring (SA/GR): NMU077-064-4
Angle Spring (SA/SLD): NMU078-064-4
Easy Effort (SPA/GR): NMU898-064-4
Easy Effort (SPA/SLD): NMU790-064-4
Soft Pedal (M/GR): NMU705-064-4
Soft Pedal (M/SLD): NMU197-064-4
